Changing ‘74 Jensen Healey Timing Belt Tensioner Bearings
Something Every J-H Owner May Want To Know!

By Greg Fletcher

The concentric pulley tensioner adjuster should have new bearings installed on a regular basis. My rule of thumb is every other timing belt change. The stock timing belt must be changed every 18,000 miles to avoid breakage and a really messed up engine. A broken belt will, of course, bend all your nice valves causing much trouble and creating great expense.

I’m using the up-rated half-moon timing belt and adjustable pulley gears (about $300 from Dave Bean Engineering) so I can go more like 40,000 - 50,000 miles between belt changes, a great time saver! I’ve only recently realized it’s been a good 70,000 miles since I’ve changed the tensioner bearings. Although I have a ‘73, my current the engine is from a ‘74, otherwise the adjuster above would look a bit different than the one shown in the photo above.

You should always plan on a timing belt change with the replacement bearings since the outer crank fan belt pulley must be removed to pull off the concentric pulley (and bearings) above it.

The whole process is NBD (No Big Deal) with the only requirements being some modest tools, timing light, a drift, a good bench vise to press off the old bearings and press on the new ones and a few hours of your time.

Tools needed

Basic 1/2” drive socket set, including a 19mm socket for the crankshaft bolt & a 1 3/4” or 44-45mm round object used a drift.

  • 1/2’ drive torque wrench
  • Bench vise
  • One set (two) bearings ($20 from Delta Motorsports)- ‘75 & ‘76 use a one-piece pulley unit ($75 from Delta Motorsports)
  • New Nylock locknut for adjuster
  • Timing belt (about $30)
  • 22mm open end wrench or crescent wrench for tensioner adjuster
  • Mark I ‘72 & ‘73 JH’s need the special Jensen rear adjusting tensioner wrench or convert to ‘74 style adjuster (needs some machining or this)
  • Rubber or similar mallet
  • Timing light to check timing
  • Anti-seize compound

Top Dead Center
Remove the battery negative cable and the coil lead for safety. Turn the engine over until the gears line up (you may need to turn two revolutions for the cam gears to line up) at Top Dead Center (TDC). If in doubt you can remove the cam bolts & washers to see where the keyways are located. I would advise anyone to never remove the timing belt without the engine at TDC. If any gears are moved, it will be difficult to see and even harder to set back properly.

At TDC, before I get too deep into anything, I always loosen the crankshaft bolt. Put the car in gear and apply the hand brake. This bolt should be torqued to 58-60 ft lbs, so a 19mm wrench and a rubber mallet should break it loose with a few blows. If not, the bolt has been over torqued and you will need to figure out how to loosen it before you proceed. Often, a liberal application of a firm mallet will eventually work. On occasion, an impact gun is the only thing that will remove it (presumably as this is how it got that way to
begin with).

An electric impact gun often works for the home mechanic. At this point you would need to remove the radiator to gain access to the bolt from the front (add an additional vino to the rating for that).
With the bolt slightly lose, make sure the engine is still at TDC, or tighten a bit and readjust.
Use you mallet to tap the fan belt pulley forward and remove so you’ll have access to the timing belt at the crankshaft.

Use a 22mm open end wrench to loosen the concentric adjuster (pull the wrench toward you to loosen, away to tighten). The belt should be loose and you can now pull it forward and off of the gear pulleys.

Do not move the cams in relation to the crankshaft. If doing a valve adjustment you would rotate the crankshaft back (counter clockwise) about 15 degrees to go down into the liners so the cams could move independently and not contact the pistons. For changing a timing belt and tensioner bearings it is sufficient to leave the crank and other pulleys as is.

With the outer crank pulley removed we can now remove the tensioner pulley assemble from the engine. The concentric shaft that the pulley rides on is a simple press fit into the block, and I just rotated the adjusting nut on the front clockwise to move it forward. In a few minutes that is off the block and we can now consider the bearings.

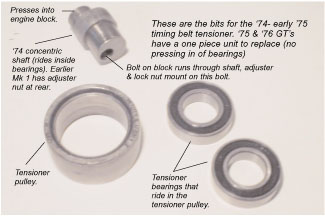

Once removed, I could tell immediately that the bearings were in a bad state. They were very rough when spun and made most unpleasant noises. I did notice the old ones were made in Japan and that the new bearings are now made in the fine country of Rumania. This gave some cause for concern, but they seemed smooth enough and were definitely a lot better than what I had now.

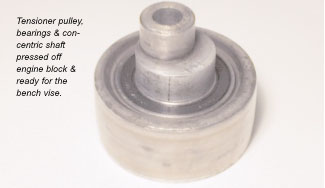

Pressing out the old bearings
The key here is finding the correct size socket(s) or other stout round implement to act as an impromptu drift. To remove the concentric shaft, a 17mm socket and two pieces of wood were all that
were needed.

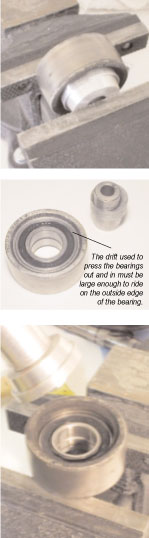

With the shaft removed I could deal with the bearings themselves. This proved somewhat troublesome, and took a while before I found a drift that was exactly the right size. When pressing out the old bearings and especially when pressing new ones in, it’s quite important to have a drift that will ride on the outside metal edge of the bearing and not crush the bearing sleeve inside. You’ll need a suitable drift that measures 1 3/4” (44-45mm) in diameter. I started it in the vise (above), which will only press out about an 1/8” and I then pounded the rest of the way with my drift on the vise (right)

It’s a simple matter to press the new ones in back in. I used the larger drift to press in the two bearings in the vise and then, with the large drift to hold the bearing in place on one side, put the concentric shaft in the vise and tightened it up. The new bearings were all back together in a few minutes.

The tensioner assembly is pressed back on the block (use a dab of anti-seize here) by turning the adjuster and pushing back and then tightening into place with the lock nut (always use a new Nylock nut). The new timing belt is put back on (I removed the upper radiator hose and slide it down and around the fan for that since I didn’t feel like removing the radiator on this job).

Everything else is replaced the way it came off. The belt should be adjusted for tension (when cold you should be able to depress the belt about an 1/8 inch between the ignition sprocket and intake cam. This will need an additional tightening in a few weeks of driving. Throw on a new fan belt, install the crank pulley and torque the crank bolt to 58-60 lbs with your torque wrench, reattach the battery and coil lead & adjust the new belt and you should be ready to go.

Start up the engine and check the timing, adjust as necessary. Be sure to take a look at the belt in a week or so of regular driving and readjust as needed. That’s it! New bearings, new timing belt, you’re good for at least another 18,000 miles on the belt or in my case another 40,000 miles and
about that long on the tensioner

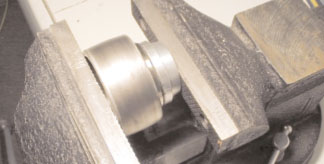

The use of a bench vise is essential for this job. Removal and replacement of shaft and bearings is a matter of finding the correct size tool to use as a drift.
Here, two pieces of wood were needed to help push the shaft out.
